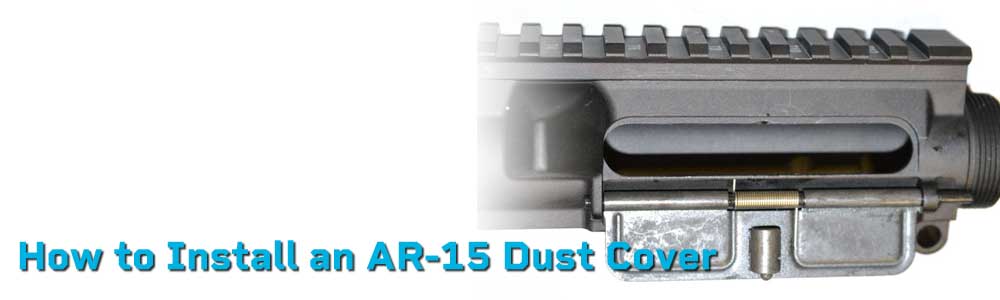

How to Install an AR‑15 Dust Cover

Installing or replacing the dust cover on your AR‑15 may seem small, but it protects your bolt carrier group from debris and ensures smooth function during transport and storage.

---

🧰 Tools & Parts You’ll Need

• AR‑15 ejection port (dust) cover
• Hinge pin (rod)
• Ejection port cover spring
• Snap ring (C‑clip)
• Needle-nose pliers or small screwdrivers
• Masking tape (to protect finish)
• Optional: vise block and padded vise

---

🔩 Step-by-Step Instructions

1. Remove the Snap Ring
   Protect the upper receiver finish with masking tape around the hinge pin. Use small pliers or screwdrivers to carefully pop the C‑clip off the hinge pin groove. This little part is easy to lose.

2. Slide Out the Hinge Pin
   With the clip removed, slide the hinge pin out of the upper receiver. Keep your thumb over the spring to prevent it from flying off .

3. Install the Dust Cover and Spring
   Insert the ejection port cover into position. Rotate the cover spring so the short leg presses on the receiver and the long leg sits under the cover, applying tension .

4. Reinsert the Hinge Pin
   Carefully push the hinge pin back through the cover and spring until fully seated. The spring must hold the cover open when the bolt cycles backward.

5. Snap on the C‑Clip
   Use tweezers or needle-nose pliers to place the snap ring back into the groove. You should feel or hear a light click when installed correctly.

6. Function Test
   Flip the upper upside down so the dust cover is closed; it should stay closed. Then push it open—it should spring open crisply and stay open under tension .

---

🧠 Pro Tips from the Community

From AR15.com users:

“For the spring, put the pin about 1/3 of the way … rotate the long end clockwise … push the pin all the way through … use a magnetized screwdriver for the C‑clip.”

And on Reddit:

“Take off the e‑clip from the rod and slide it in from the forward assist side … avoid scratching your upper.”

With patience and good lighting, the install takes just a few minutes.

---

🔧 Related Parts & Tools for This Install

Before installing your dust cover, make sure you have everything you need:

• AR-15 dust covers – Browse standard, enhanced, and polymer options
• AR-15 upper receiver parts – Find forward assists, pins, and more
• AR-15 gunsmithing tools – Punch sets, vises, and small part tools
• Armorer’s tool kits – Complete kits for assembly and maintenance
• AR-15 parts – Explore our full catalog of AR components
• How to install an AR-15 charging handle – Another critical step in upper receiver assembly

---

✅ Frequently Asked Questions

Q: Do I need to remove the barrel or handguard?
A: Typically yes—you’ll normally need to remove the barrel nut to access the dust cover pin. Some users can install from the forward assist side after removing the snap ring, but it’s tricky and risks damaging the clip .

Q: Can I install a polymer cover instead?
A: Yes. Many modern polymer covers are self-contained—no spring or pin, so installation is fast and tool-free .

Q: What orientation should the dust cover spring go?
A: The short leg goes into the receiver, long leg under the cover. Twist it clockwise under tension before pin insertion .

Q: Why is the C-clip so hard to reinstall?
A: It’s tiny and springy—many users lose it during installation. Using a magnetized screwdriver or working over a contrasting surface can help keep it from flying away.

---
