Will this extended charging handle fit all AR-15 uppers?

Yes, this charging handle is compatible with all mil-spec AR-15 upper receivers.

Is the charging handle ambidextrous?

Some models are ambidextrous. Check the product options for left/right-hand compatibility.

Does this charging handle work well with optics?

Yes. The extended latch is designed to clear rear-mounted optics, making it easier to charge your rifle.

What’s the benefit over a standard mil-spec handle?

Extended charging handles offer faster access, better grip with gloves, and smoother operation during tactical or competitive shooting.

Can I install this myself?

Yes. Simply slide the charging handle into the upper receiver during reassembly — no tools required.

How to Install an AR-15 Charging Handle

**Geissele SCH: Super Charging Handle - for AR-15 5.56** $105.00

**PRI Gas Buster AR-15 Charging Handle with Combat Latch** $89.95

**ADF-MKII AR15/M4 5.56 Ambidextrous Charging Handle** $74.95

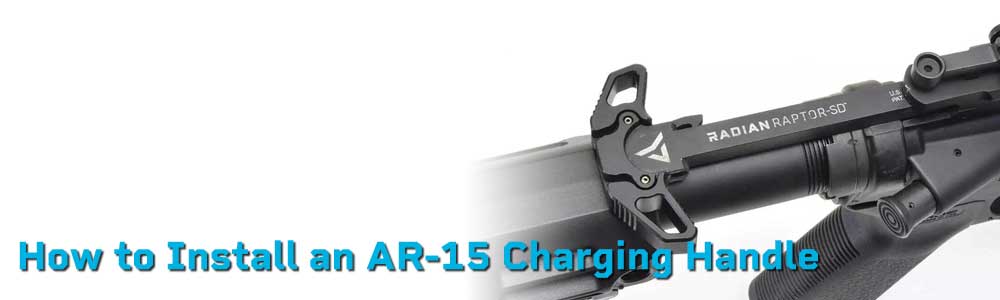

How to Install an AR-15 Charging Handle (Step-by-Step Guide)

Whether you're upgrading to an ambidextrous model or swapping in a low-profile handle for a scoped setup, installing an AR-15 charging handle is one of the simplest and most satisfying upgrades you can make to your rifle. Here’s exactly how to do it — no fluff, no confusion.

Tools You’ll Need

AR-15 upper receiver (complete or stripped)
Charging handle (standard or ambidextrous)
Bolt carrier group (BCG)
Work surface or gun mat
Optional: gloves and a light coat of lubricant

That’s it. No hammers, no punches, no vice. This is a 5-minute job.

Step-by-Step: Installing an AR-15 Charging Handle

1. Clear the Rifle

If the upper is attached to a complete rifle:

Drop the mag.
Check the chamber.
Remove the upper from the lower.
Safety first. Always.

2. Remove the Bolt Carrier Group

Pull the charging handle back.
Slide the BCG rearward and out of the receiver.
Set it aside. You’ll reinstall it in a minute.

3. Remove the Old Charging Handle (if installed)

Pull the handle straight back until it hits the “stop” near the latch cutout.
Tilt the rear of the handle slightly downward.
Slide it out of the upper receiver track.

4. Insert the New Charging Handle

Angle the new charging handle into the upper receiver’s track.
There’s a pair of internal “rails” — the handle must slide into the top slot and sit flush.
Push it forward until it clicks past the latch point.

5. Reinstall the Bolt Carrier Group

With the charging handle held slightly out, drop the BCG into place.
Guide it forward together with the handle.

That’s it. Done.

Pro Tips for AR-15 Charging Handle Installation

Don’t Over-Lube: A thin film of gun oil is fine, but too much can attract carbon buildup fast.
Go Ambi if You Haven’t: Upgrading to an ambidextrous charging handle (like Radian Raptor or BCM Mod 4X4) makes a noticeable difference — especially if you're running optics.
Watch for Fitment Issues: Some billet uppers may have tight tolerances. If it doesn’t slide in smooth, don’t force it — inspect the rail slots first.

Common Mistakes to Avoid

Incorrect orientation: The handle should curve slightly downward and forward when installed.
Skipping the channel track: If the handle doesn’t seat flush, it’s not in the rails.
Forgetting the latch: When testing latch tension, make sure it locks securely and doesn’t flop open on its own.

Why Upgrade Your Charging Handle?

Let’s be honest — mil-spec charging handles get the job done, but that’s about it. Upgrading gives you:

Better ergonomics under pressure or with gloves
Ambidextrous control for off-hand manipulation
Stronger construction — especially for suppressed builds or high round count rifles

Final Thoughts

Installing an AR-15 charging handle is a beginner-friendly task that makes a big difference in real-world performance. Whether you're running drills, clearing malfunctions, or just want a smoother pull — it’s worth the 5 minutes.

🔧 Parts & Tools You Might Need

To install your charging handle correctly and safely, make sure you have the right components and support gear on hand:

AR-15 extended charging handle – Upgrade for easier handling and faster charging
AR-15 charging handles – Explore mil-spec, oversized, and ambidextrous options
AR-15 upper receiver parts – Everything you need for a complete upper build
AR-15 bolt carrier group – Compatible BCGs for smooth, reliable cycling
AR-15 gunsmithing tools – Essential for upgrades, installs, and maintenance
Armorer’s tool kits – Complete kits for serious builders and field service

Frequently Asked Questions

How do I know if my charging handle is compatible?

Most AR-15 charging handles follow the same MIL-SPEC pattern and will fit any standard upper. Check product listings for compatibility if you’re running a billet or side-charging upper.

Can I install a charging handle with the rifle fully assembled?

Yes — just lock the bolt back, separate the upper from the lower, and remove the BCG. No need to fully disassemble your rifle.

What’s the best AR-15 charging handle?

Top picks include the Radian Raptor, BCM Gunfighter, and Geissele Airborne — all offer durability and ambidextrous control.

Do ambidextrous charging handles work in all AR-15s?

Yes, as long as your upper is standard MIL-SPEC. If you're running something custom (like a side-charger or monolithic upper), check with the manufacturer.
